2019-10-14

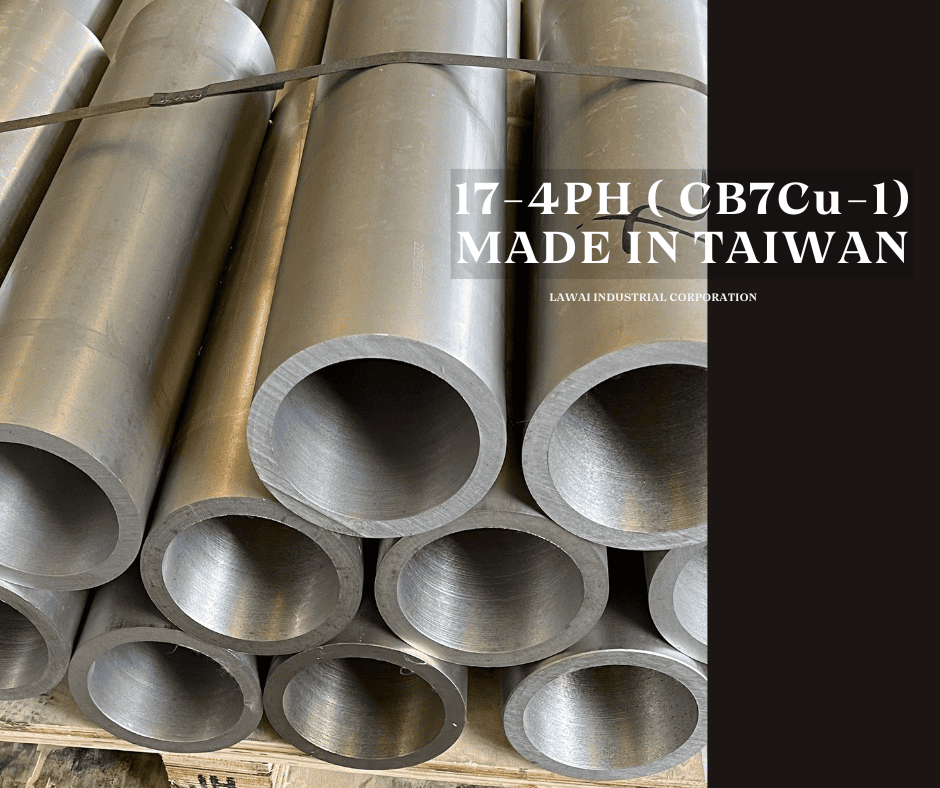

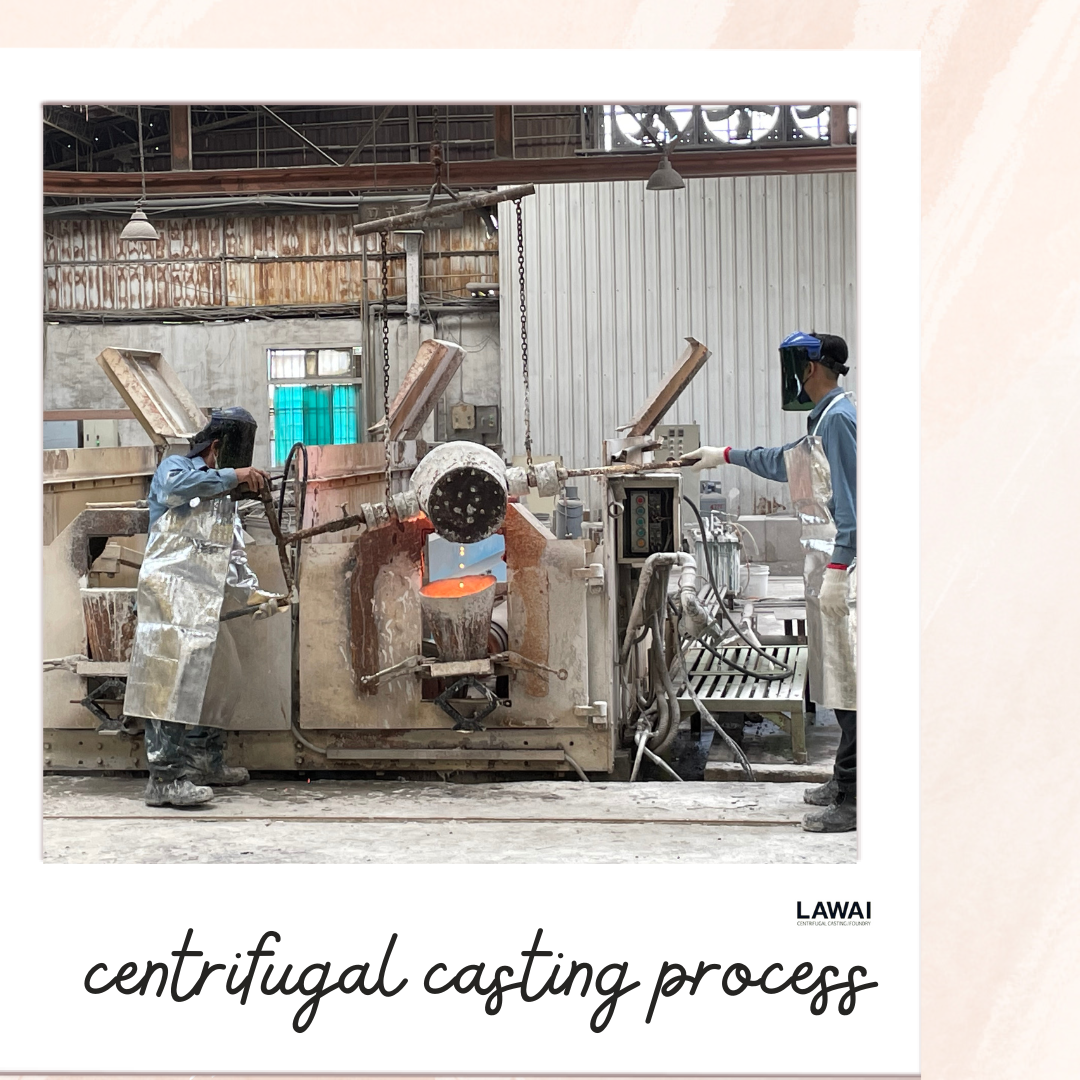

17-4PH stainless steel tube manufactured by centrifugal casting
If you ask me, what product could represent LAWAI’s capability and quality?
I would say, 17-4PH stainless steel tube manufactured by centrifugal casting.
What are the characteristics of 17-4PH stainless steel tube?
17-4PH stainless steel tube is the precipitation hardening stainless steel.
After the heat treatment, the structure of 17-4PH is the martensite.
At the temperature around 316 degrees Celsius, the 17-4PH has the good corrosion resistance and mechanical properties. The corrosion resistance of 17-4PH is better than other precipitation hardening steel.
Is 17-4PH stainless steel tube your candidate for the project?
17-4PH stainless steel tube has ever been the main material we produce in the very high frequency. Good corrosion resistance, mechanical properties and price are the main reasons that 17-4PH stainless steel tube becomes popular in several industries.
When comparing 316 and 17-4PH stainless steel tubes, 17-4PH stainless steel tube has higher tensile strength, yield strength, hardness and elongation than SS316 tubes.
If you need higher hardness steel with moderate corrosion resistance, 17-4PH might be the candidate.
17-4PH stainless steel tube manufactured by centrifugal casting is better than forging?
Our mechanical properties of 17-4PH stainless steel tube produced by centrifugal casting are almost equivalent to forging. Few years ago, we have reported an international news regarding our 17-4PH stainless steel tube by centrifugal casting. On the SGS report, the average charpy impact energy of our centrifugal casting specimens is almost equivalent to forging at the same temperature.
This proved that our 17-4PH stainless steel tube produced by centrifugal casting is able to be compared with forging.
Should choose 17-4PH stainless steel tube by centrifugal casting ?
If you need the hollow & symmetrical 17-4PH stainless steel tube and the dimension is within centrifugal casting capability, 17-4PH stainless steel tube by centrifugal casting technique will be your priority.
P.S. The diameter we produce is from 50 to 400 mm more often
17-4PH stainless steel tube applied in various industries
In the past, our 17-4PH stainless steel tubes were used widely in oil & gas industry. We have supplied our 17-4PH stainless steel tubes by centrifugal casting to top 3 oil & gas companies in U.S.A. regularly.
Now we have expanded the markets to use our 17-4PH stainless steel tubes by centrifugal casting.
One of the examples, the 17-4PH tubes were used as the key components for the machines to generate electricity in the green energy industry. We felt proud that our 17-4PH tubes were used for the meaningful application and the value of our 17-4PH tubes were beyond our expectations!
If you are looking for 17-4PH stainless steel tubes produced by centrifugal casting, please do not hesitate to contact us.
LAWAI is ready to supply you the best 17-4 tubes produced by centrifugal casting technique.
_____________________________________________________________________________
In addition to 17-4PH stainless steel tube, more grades we are able to manufacture are as follows.
Stainless Steel 300 Series Tubes (centrifugal casting)
|
Wrought Grade |
AISI 304 stainless steel tube |
AISI 304Lstainless steel tube |
AISI 316 stainless steel tube |
AISI 316L stainless steel tube |
AISI 310S stainless steel tube |
|
ACI/CAST |
CF8 stainless steel tube |
CF3 stainless steel tube |
CF8M stainless steel tube |
CF3M stainless steel tube |
CK20 stainless steel tube |
|
CAST EN/DIN |
1.4308 GX6CrNi189 stainless steel tube |
1.4306 X2CrNi19-11 stainless steel tube |
1.4408 GX6CrNiMo18-10 stainless steel tube |
1.4404/1.4409 X2CrNiMo17-12-2 stainless steel tube |
|
|
Wrought Grade |
AISI 347 stainless steel tube |
AISI 317 stainless steel tube |
AISI 317Lstainless steel tube |
Nitronic 60 stainless steel tube |
Nitronic 50 stainless steel tube |
|
ACI/CAST |
CF8C stainless steel tube |
CG8M stainless steel tube |
CG3Mstainless steel tube |
CF10SMNNstainless steel tube |
CG6MMNstainless steel tube |
|
CAST EN/DIN |
1.4552, GX5CrNiNb18-9 stainless steel tube |
1.4408 GX6CrNiMo18-10 stainless steel tube |
|
|
|
|
Wrought Grade |
20Cb3 stainless steel tube |
AISI 309 stainless steel tube |
CE20Nstainless steel tube |
|
|
|
ACI/CAST |
CN7Mstainless steel tube |
CH20 stainless steel tube |
CD20Nstainless steel tube |
Nitronic 33 stainless steel tube |
Nitronic 40 stainless steel tube |
|
CAST EN/DIN |
|
|
|
|
|
|
Wrought Grade |
|
AL6XN stainless steel tube |
254SMO, F44 stainless steel tube |
|
ACI/CAST |
CN7MS stainless steel tube |
CN3MN stainless steel tube |
CK3MCuN stainless steel tube |
|
CAST EN/DIN |
|
|
|
Stainless Steel 400 Series Tubes (centrifugal casting)
|
Wrought Grade |
AISI 410 stainless steel tube |
AISI 416 stainless steel tube |
AISI 420 stainless steel tube |
AISI 420F stainless steel tube |
AISI 431 stainless steel tube |
|
ACI/CAST |
CA15 stainless steel tube |
416 stainless steel tube |
CA40 stainless steel tube |
CA40F stainless steel tube |
431 stainless steel tube |
|
CAST EN/DIN |
1.4008 GX8CrNi13 stainless steel tube |
|
1.4027 GX20Cr14 stainless steel tube |
|
1.4059 GX22CrNi17 stainless steel tube |
|
Wrought Grade |
13-4, F6NMstainless steel tube |
|
|
|
|
ACI/CAST |
CA6NM stainless steel tube |
440A stainless steel tube |
440B stainless steel tube |
440B stainless steel tube |
|
CAST EN/DIN |
1.4313 GX5CrNi134 stainless steel tube |
|
|
|
Stainless Steel Duplex Tubes (centrifugal casting)
|
Wrought Grade |
|
SAF 2205,F51 stainless steel tube |
Ferralium255 stainless steel tube |
|
|
|
ACI/CAST |
CD4MCu stainless steel tube |
CD3MN stainless steel tube |
CD7MCuN stainless steel tube |
CD4MCuN stainless steel tube |
DPX-1B MOD stainless steel tube |
|
CAST EN/DIN |
|
1.4470 GX2CrNiMoN22-5 stainless steel tube |
|
|
|
|
Wrought Grade |
SAF 2507, F53 stainless steel tube |
|
|
|
ACI/CAST |
CE3MN stainless steel tube |
CE8MN stainless steel tube |
CD3MWCuN stainless steel tube |
|
CAST EN/DIN |
1.4469 GX2CrNiMoN26-7 stainless steel tube |
|
|
Stainless Steel Precipitation Hardening Tubes (centrifugal casting)
|
Wrought Grade |
17-4PH stainless steel tube |
15-5PH stainless steel tube |
|
ACI/CAST |
CB7Cu-1 stainless steel tube |
CB7Cu-2 stainless steel tube |
|
CAST EN/DIN |
1.4540 GX4CrNiCuNb16-4 stainless steel tube |
|
