2021-02-26
Taiwan seamless steel tube manufacturer – stainless steel & special alloys

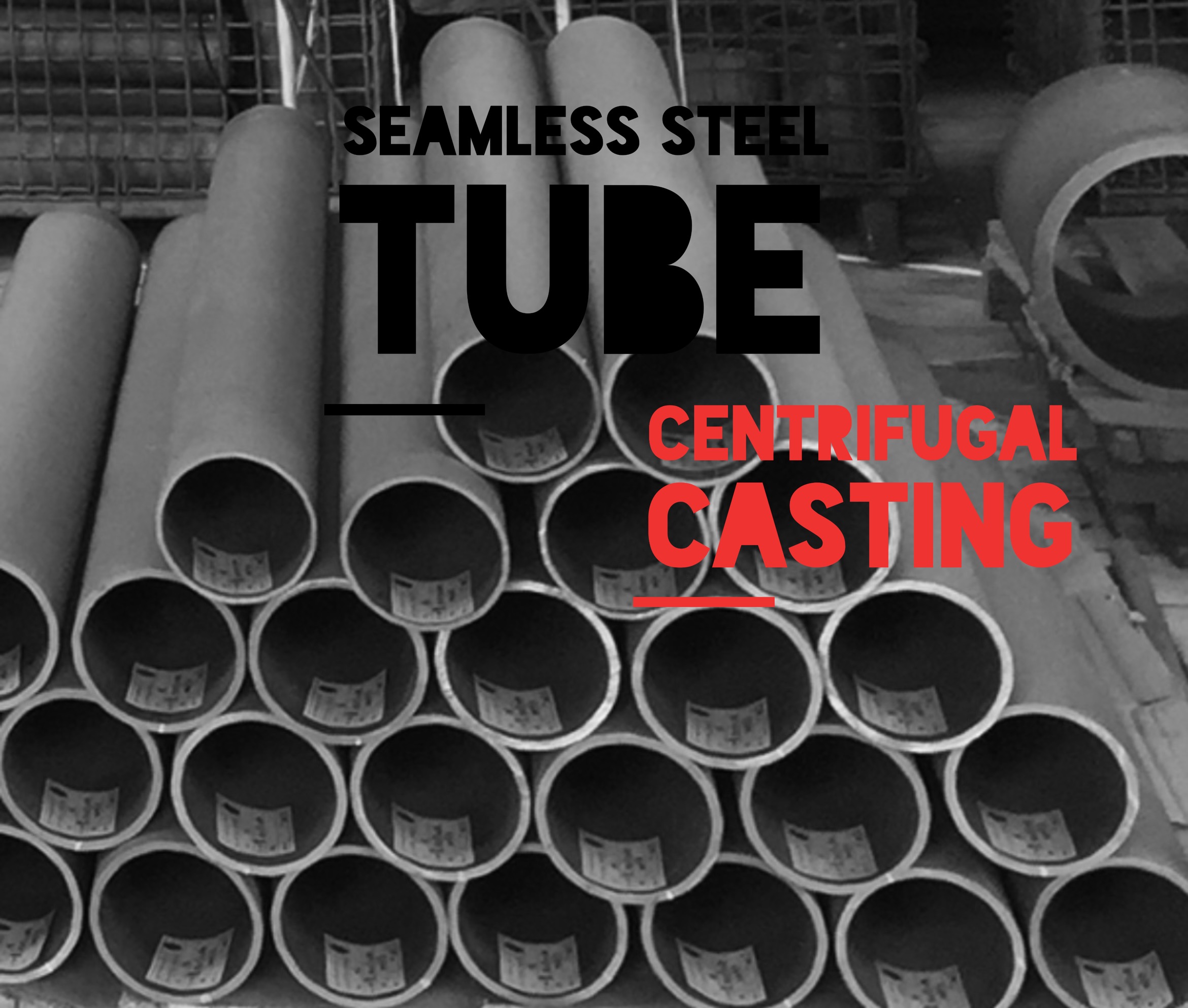

Seamless steel tubes manufactured by centrifugal casting

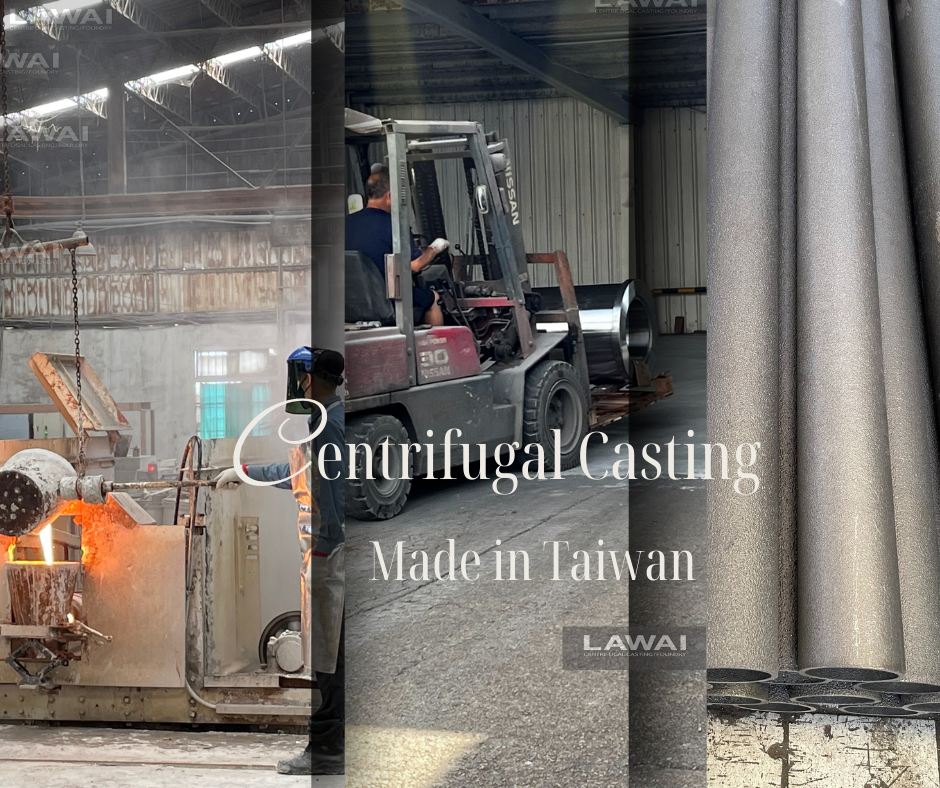

When it comes to the manufacturing process of seamless steel tubes, maybe you will think of extruded tubes first. Today, we would like to introduce another technique to produce seamless steel tubes. And this method is centrifugal casting.
There is without the limitation for manufacturing the seamless steel tubes by centrifugal casting. All our seamless steel tubes are customized. The range of diameter is 50~600 mm. The min. thickness is 4.5 mm and the max. length is 4,000 mm.
The common materials of seamless steel tubes manufactured by extrusion is 304, 316 and duplex stainless steel 2205 & 2507. However, there is a wide range of materials of centrifugal casting. In addition to the materials mentioned above, all 300 stainless steel series, duplex stainless steel, bi-metal alloys, heat-resistant alloys ( Including HK40, HP, HU…etc), 17-4PH and superalloy (Ex: Incoloy 800H) are able to be manufactured at our foundry.
300 series stainless steel - seamless steel tubes（manufactured by centrifugal casting）
|
AISI Spec. |
ACI Spec. |
EN/DIN Spec. |
|
304 seamless steel tube |
CF8 seamless steel tube |
1.4308 GX6CrNi189 seamless steel tube |
|
304L seamless steel tube |
CF3 seamless steel tube |
1.4306 X2CrNi19-11 seamless steel tube |
|
316 seamless steel tube |
CF8M seamless steel tube |
1.4408 GX6CrNiMo18-10 seamless steel tube |
|
316L seamless steel tube |
CF3M seamless steel tube |
1.4404/1.4409 X2CrNiMo17-12-2 seamless steel tube |
|
310S seamless steel tube |
CK20 seamless steel tube |
|
|
347 seamless steel tube |
CF8C seamless steel tube |
1.4552, GX5CrNiNb18-9 seamless steel tube |
|
317 seamless steel tube |
CG8M seamless steel tube |
1.4408 GX6CrNiMo18-10 seamless steel tube |
|
317L seamless steel tube |
CG3M seamless steel tube |
|
|
Nitronic 60 seamless steel tube |
CF10SMNN seamless steel tube |
|
|
Nitronic 50 seamless steel tube |
CG6MMN seamless steel tube |
|
|
20Cb3 seamless steel tube |
CN7M seamless steel tube |
|
|
309 seamless steel tube |
CH20 seamless steel tube |
|
|
CE20N seamless steel tube |
CD20N seamless steel tube |
|
|
|
Nitronic 33 seamless steel tube |
|
|
|
Nitronic 40 seamless steel tube |
|
|
|
CN7MS seamless steel tube |
|
|
AL6XN seamless steel tube |
CN3MN seamless steel tube |
|
|
254SMO, F44 seamless steel tube |
CK3MCuN seamless steel tube |
|
400 series stainless steel - seamless steel tube（manufactured by centrifugal casting）
|
AISI Spec. |
ACI Spec. |
EN/DIN Spec. |
|
410 seamless steel tube |
CA15 seamless steel tube |
1.4008 GX8CrNi13 seamless steel tube |
|
416 seamless steel tube |
416 seamless steel tube |
|
|
420 seamless steel tube |
CA40 seamless steel tube |
1.4027 GX20Cr14 seamless steel tube |
|
420F seamless steel tube |
CA40F seamless steel tube |
|
|
431 seamless steel tube |
431 seamless steel tube |
1.4059 GX22CrNi17 seamless steel tube |
|
13-4 seamless steel tube , F6NM seamless steel tube |
CA6NM seamless steel tube |
1.4313 GX5CrNi134 seamless steel tube |
|
|
440A seamless steel tube |
|
|
|
440B seamless steel tube |
|
Duplex stainless steel - seamless steel tube（manufactured by centrifugal casting）
|
Forging Spec. |
ACI Spec. |
EN/DIN Spec. |
|
|
CD4MCu seamless steel tube |
|
|
2205 seamless steel tube, F51 seamless steel tube |
CD3MN seamless steel tube |
1.4470 GX2CrNiMoN22-5 seamless steel tube |
|
Ferralium255 seamless steel tube |
CD7MCuN seamless steel tube |
|
|
|
CD4MCuN seamless steel tube |
|
|
|
DPX-1B MOD seamless steel tube |
|
|
2507 seamless steel tube, F53 seamless steel tube |
CE3MN seamless steel tube |
1.4469 GX2CrNiMoN26-7 seamless steel tube |
|
|
CE8MN seamless steel tube |
|
|
|
CD3MWCuN seamless steel tube |
|
Precipitation hardening - stainless steel tube（manufactured by centrifugal casting）
|
Forging Spec. |
ACI Spec. |
EN/DIN Spec. |
|
17-4PH seamless steel tube |
CB7Cu-1 seamless steel tube |
1.4542 GX4CrNiCuNb16-4 seamless steel tube |
|
15-5PH seamless steel tube |
CB7Cu-2 seamless steel tube |
|
Heat-resistant seamless steel tubes
Heat-resistant steel was designed for casting specification, therefore centrifugal casting is the wise choice to produce the heat-resistant seamless steel tubes.
It is not easy to purchase heat-resistant seamless steel tubes with lager diameters in Taiwan. Most users imported heat-resistant seamless steel tubes produced by extrusion method. The prices were high and small quantity order was not possible.
However, the heat-resistant seamless steel tubes produced by centrifugal casting are able to be customized by individual demands. The quantity is able to be low and this advantage is good for customers to decrease the cost and the burden of stock.
The radiant tubes used in heat-treating plants are heat-resistant seamless steel tubes manufactured by centrifugal casting. The history for producing and developing radiant tubes by us were long and most our radiant tubes were exported to Europe, America, Japan and some countries of southeastern Asia because they had larger demands of radiant tubes than the needs in Taiwan.
Yet, more and more local customers had the demands of radiant tubes. They inquired our radiant tubes via internet or recommendation by others and they were surprised at our capability for the production of various radiant tubes.
The quality and stability of our radiant tubes were impressing because of the fruitful experience we have gained when working with foreign customers in the past.
Heat-resistant seamless steel tube（manufactured by centrifugal casting）
|
LAWAI Alloy |
JIS Spec. |
|
HE seamless steel tube |
SCH17 seamless steel tube |
|
HF seamless steel tube |
SCH12 seamless steel tube |
|
HH-2 seamless steel tube |
SCH13 seamless steel tube |
|
HI seamless steel tube |
SCH18 seamless steel tube |
|
HK seamless steel tube |
SCH21 seamless steel tube |
|
HK-40 seamless steel tube |
SCH22 seamless steel tube |
|
HL seamless steel tube |
SCH23 seamless steel tube |
|
HN seamless steel tube |
|
|
HP seamless steel tube |
SCH24 seamless steel tube |
|
HT seamless steel tube |
SCH15 seamless steel tube |
|
HU seamless steel tube |
SCH20 seamless steel tube |
|
HW seamless steel tube |
|
|
HX seamless steel tube |
|
|
HP MOD seamless steel tube |
|
Superalloy seamless steel tubes
Incoloy 800H is the material we developed in these years and this material is also the seamless steel tube we applied for the subsidy of our local government.
The clients who work in petrochemical plants would use superalloy seamless steel tubes mainly because Inconel 800H seamless steel tube is the material of the reformer tubes in the plants. For those plants, supplying the superalloy seamless steel tubes from us directly is a good news because they will save much cost. (It means they will not need to import the Inconel 800H tubes)
So far, we have developed the length 2,000 mm Incoloy 800H seamless steel tube successfully and we are changing some parameters to improve the dimensions and stability.
The development of superalloy seamless steel tubes at our foundry not only shows our current capability but also gives customers better choice of heat-resistant material.
We hope our high grade seamless steel tubes will satisfy the international and domestic demands both!
Superalloy seamless steel tube（manufactured by centrifugal casting）
|
LAWAI Alloy |
|
|
Incoloy 800H seamless steel tube |
