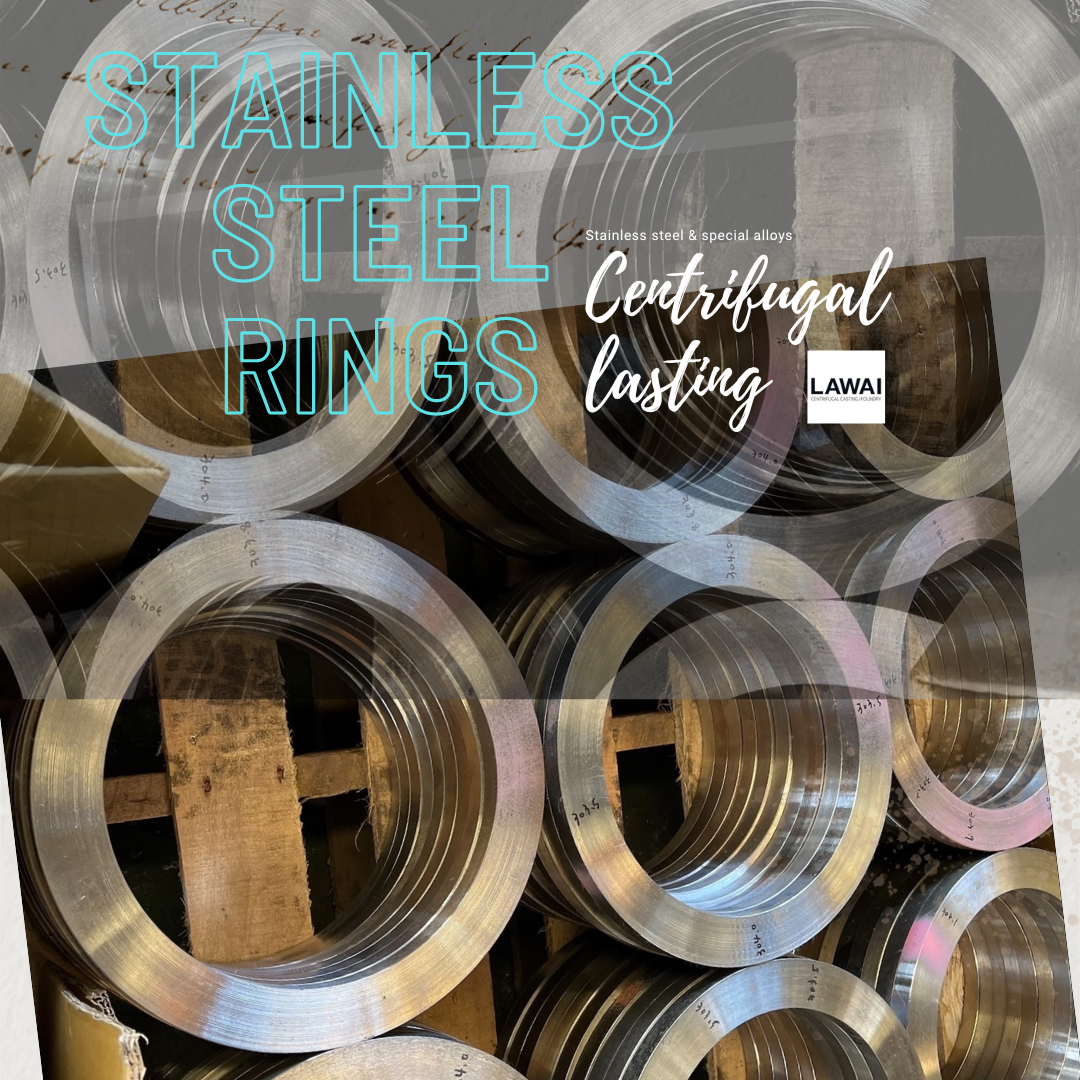

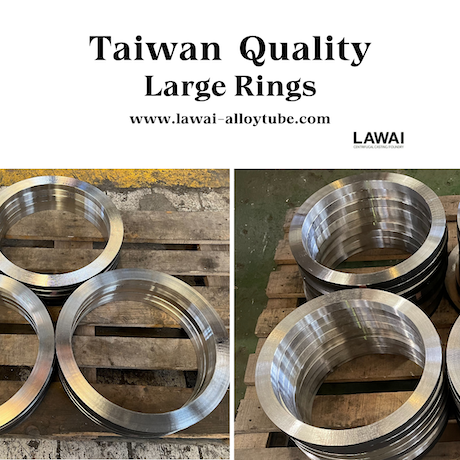

Larger Diameter Centrifugally Cast Rings

Pure and fine crystal structure is the nature of centrifugal casting

The purity is like a newborn baby; it’s high potential and original

Centrifugal casting inherits the DNA from each metal, also showing its individuality



Materials of Larger Diameter Centrifugally Cast Rings

 PLEASE SCROLL DOWN, YOU'LL FIND THE TABLES OF GRADE

  300 series, Duplex stainless steel, 17-4PH, Nickel-based alloys, Cast iron

  Custom alloys ( This is what we can do for you )


Dimensions of Larger Diameter Centrifugally Cast Rings

 ALL ARE CUSTOMIZED

  Based on your drawings and requirements

  Diameter:  Up to 600 mm


Applications of Larger Diameter Centrifugally Cast Rings

 WE'LL DO THE BEST TO ASSIST YOU WITH ANY CASE

  Industries which need larger diameter rings with high wear and corossion resistance to install into the high tech equipment

  Others


Features of
 Larger Diameter Centrifugally Cast Rings

  Centrifugal casting is without casting defects and holes

  One-piece construction - always better than weld

  Saving cost beacause of long lifetime

  Mechanical properties are almost equal to forging

  For the better world, recycled alloys will be used if the project suits

  Made in Taiwan is always beyond your expectation



Special Irons
LAWAI ALLOY Cast Specifications Wrought Specifications
ASTM UNS AISI UNS
Ni-resist 1 A436 Type 1 F41000
Ni-resist 2 A436 Type 2 F41002
Ni-resist 3 A436 Type 3 F41004
Ni-resist 4 A436 Type 4 F41005
CD-2 (≈ D-2 Tool Steel) A597 CD-2 T30402
CD-5 (≈ D-5 Tool Steel) A597 CD-5 T30405
Type D-2 (≈Ductile Ni-Resist) A439 Type D-2 F43000
Type D-2B (≈Ductile Ni-Resist) A439 Type D2-B F43001
Type IIB (≈15-3CrMo White Iron) A 532 Class IIB F45005
Type IIIA (HC-250) A 532 Class IIIA F45009
Stainless Steel – 300 Series
LAWAI ALLOY Cast Specifications Wrought Specifications
ASTM UNS AISI UNS
CF8 A351/743/744 CF8 J92600 304 S30400
CF3 A351/743/744 CF3 J92500 304L S30403
CF8M A351/743/744 CF8M J92900 316 S31600
CF3M A351/743/744 CF3M J92800 316L S31603
CK20 A351/743/744 CK20 J94202 310 S31000
CF8C A351/743/744 CF8C J92710 347 S34700
CG8M A351/743/744 CG8M J93000 317 S31700
CG3M A351/743/744 CG3M J92999 317L S31703
CF10SMnN ( Nitronic 60 ) A351/743/744 J92972
CG6MMN ( Nitronic 50 ) A351/743/744 J93790
CN7M (≈ 20Cb-3) A351/743/744 N08020
CF3M-HM
CH20 (≈ 309) A351/743 J93400
CD20N (≈ CE20N) A351/451 N08007
Nitronic 33
Nitronic 40
CN7MS A744 J94650
CN3MN A743/A744 J94651
CK3MCuN (≈254SMO)
RA330
Stainless Steel – Duplex
LAWAI ALLOY Cast Specifications Wrought Specifications
ASTM UNS AISI UNS
1A CD4MCu A 351 /A 890 J93370
4A CD3MN A890/A995 4A CD3MN J92205 2205 S31803
CD7MCuN A890 1C CD3MCuN J93373 S32550
1B CD4MCuN A890/A995 1B CD4MCuN J93372
DPX-1B MOD
5A CE3MN A890/A995  5A CE3MN J93404 2507 S32750
CE8MN A890/A995  2A CE8MN J93345
CD3MWCuN A890/A995  6A CD3MWCuN J93380 Z100 S32760
Stainless Steel – Precipitation Hardening
LAWAI ALLOY Cast Specifications Wrought Specifications
ASTM UNS AISI UNS
CB7Cu-1 A747 Gr CB7Cu-1 J92180 17-4PH S17400
CB7Cu-2 A747 Gr CB7Cu-2 J92110 15-5PH S15500
Nickel-based alloys (Superalloys)
LAWAI ALLOY Cast Specifications Wrought Specifications
ASTM UNS AISI UNS
50C50Ni+Cb A 560
CW6MC A494 CW-6MC N26625 Inconel 625 N06625
CY40 A494 CY-40 N06040 Inconel 600 N06600
N12MV A494 N-12MV N30012 Hastelloy B N10001
CW12MW A494 CW-12MW N30002 Hastelloy C/C276 N10002
N7M A494 N-7M N30007 Hastelloy B2 N10665
CW2M A494 CW-2M N26455 Hastelloy C4 N06455
CX2MW A494 CX2MW N26022 Hastelloy C22 N06022
Ni-X B435 (AMS 5390) N06002 Hastelloy X
CZ100 A494 CZ-100 N02100
LAWAI is the No. 1 Larger Diameter Centrifugally Cast Rings manufacturer in Taiwan. We provide customized Larger Diameter Centrifugally Cast Rings for our clients all over the world. The Larger Diameter Centrifugally Cast Rings produced in LAWAI – reliable and beyond your expectation!
