Materials of Centrifugally Cast Straight Radiant Tubes
- HK-40, HP, HH, HU, HF, HT...etc
- Incoloy 800H
Dimensions of Centrifugally Cast Straight Radiant Tubes
- Length: Max. 4,000 mm
- Dimeter: > 50 mm
Applications of Centrifugally Cast Straight Radiant Tubes
- Heat-treatment industry
- Petrochemical industry
- Green energy industry
- Others
Heat-resistant alloys are designed for casting manufacturing methods. And centrifugal casting is one of the techniques good for producing heat-resistant steel tubes and rings.

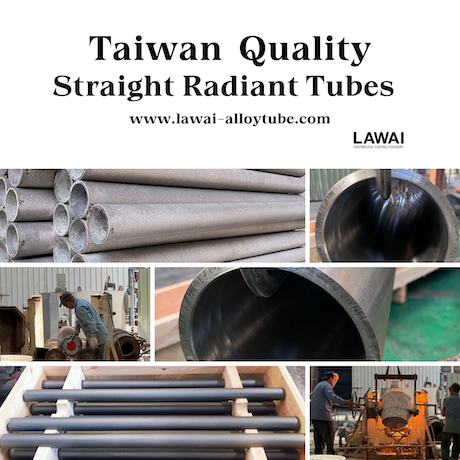

Straight radiant tubes produced by centrifugal casting are one-piece construction products with fine structures and non-porosities.
The centrifugally cast straight radiant tubes perform the extraordinary stable and long lifetime in high temperature environment.
Low quantity order of the straight radiant tubes is possible by centrifugal casting technique. Each tube is manufactured by LAWAI team in Taiwan.
Give yourself an opportunity to know more about us.
We believe the straight radiant tubes made in Taiwan will perform the best in your applications!
LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
---|---|---|---|---|
ASTM | UNS | AISI | UNS | |
HD / SCH11 | A297 HD / DIN 1.4823 | J93005 | ||
HE / SCH17 | A297 HE | J93403 | ||
HF / SCH12 | A297 HF | J92603 | 308 | S30800 |
HH-2 / SCH13-A | A297 HH / DIN 1.4837 | J93503 | 309 | S30900 |
HI / SCH18 | A 297 HI / DIN 1.4846 | J94003 | ||
HK / SCH21 | A297 HK / DIN 1.4848 | J94224 | 310 | S31000 |
HK-40 / SCH22 | A 351 HK-40 | J94224 | 310 | S31000 |
HL / SCH23 | A 297 HL | N08604 | ||
HN | A297 HN | J94213 | ||
HP / SCH24 | A297 HP / DIN 1.4857 | N08705 | ||
HT / SCH15 | A297 HT | N08605 | ||
HU / SCH20 | A297 HU / DIN 1.4865 | N08004 | ||
HW | A 297 HW | N08001 | ||
HX | A297 HX | N06006 | ||
HP MOD | DIN 1.4852 | |||
800H | A351 CT15C / DIN 1.4859 | N08151 | INCOLOY 800H | N08810 |
