    Incoloy 800H tube manufacturer

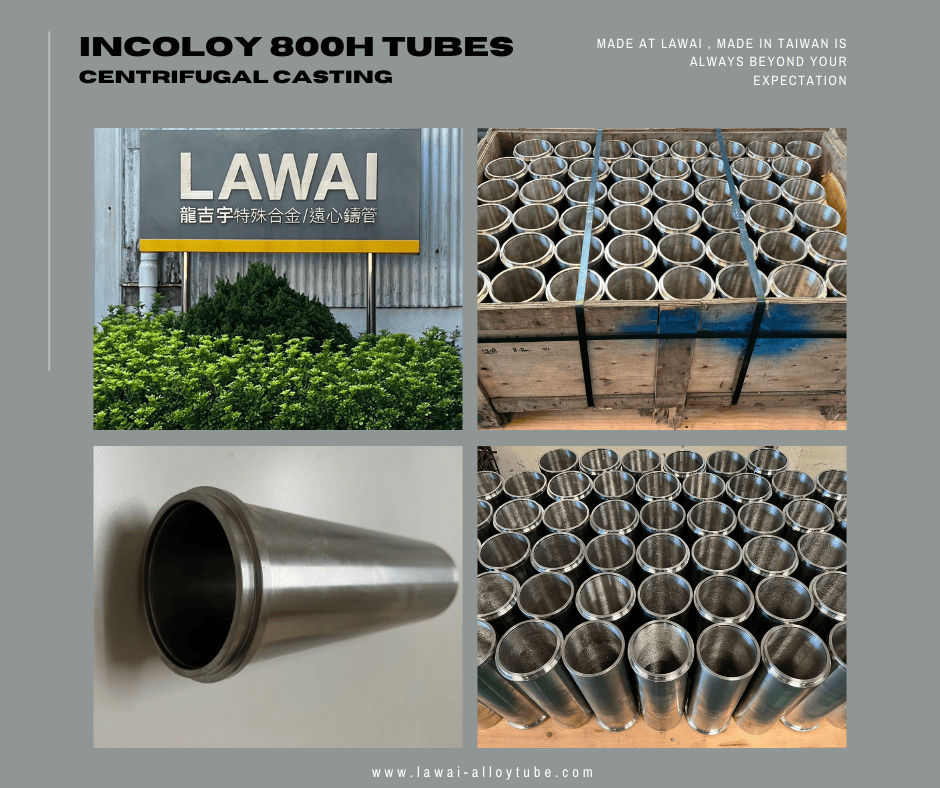

 Incoloy 800H tube produced by centrifugal casting at LAWAI INDUSTRIAL CORPORATION

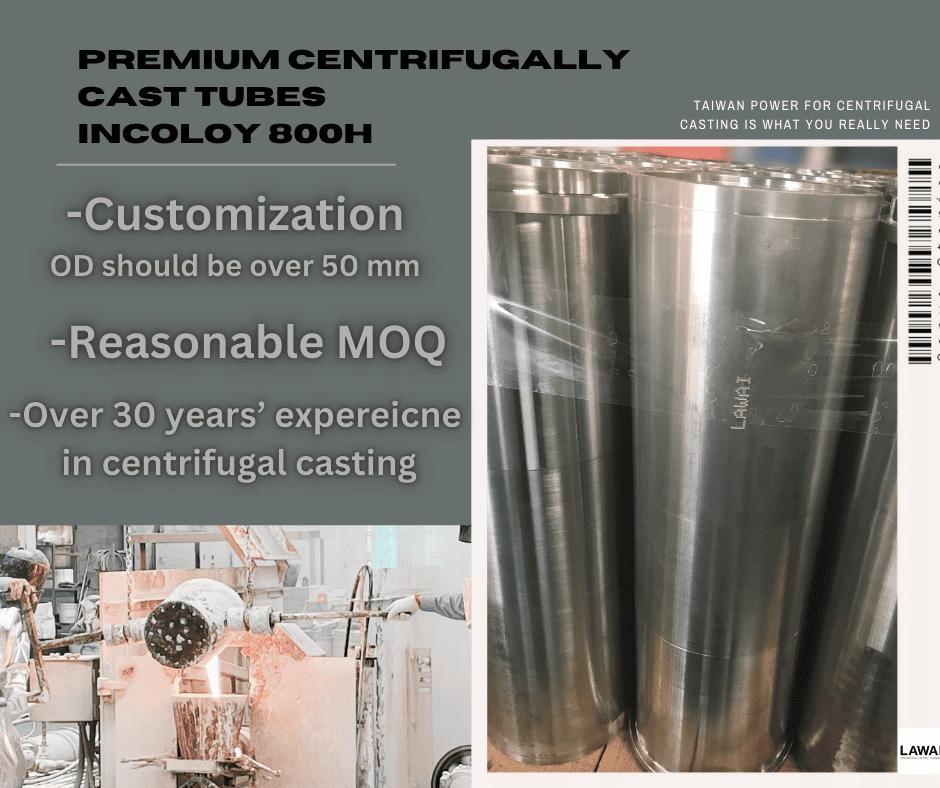

Incoloy 800H tube manufactured by centrifugal casting

LAWAI is the Incoloy 800H tube manufacturer by centrifugal casting technique in Taiwan




Incoloy 800H tube is one of the superalloy able to be manufactured by us in Taiwan


Incoloy 800H is the material with the heat and creep resistance and it is regarded as a special alloy.  Because of the rapid progress of petrochemical industry in Taiwan, the demands of high grade tubes as the key components for the petrochemical equipment increased through time.  Therefore, we developed/are developing higher grade heat-resistant tubes in order to meet their needs.  And Incoloy 800H tube is one of the materials we developed successfully.


Developing Incoloy 800H tube is challenging

Incoloy 800H is the Fe-Cr-Ni superalloy and it is easy to be oxidized when melting in the air because it contains 0.3%Ti and 0.5%Al.  Vacuum melting furnace is suitable for melting Incoloy 800H, however the size of the furnace is not large enough for centrifugal casting.  Thus, we developed the special agent and used it when melting Incoloy 800H in the high frequency furnace to avoid the oxidation.


Is it easy to purchase Incoloy 800H tube in Taiwan?

The answer is no.  It is difficult to purchase Incoloy 800H tubes here.

Incoloy 800H tube is the special material and importing the alloy 800H seamless tubes produced by forging technique is the only way if you do not know centrifugal casting.

Most trading companies do not have the stock of Incoloy 800H tubes.  Even though they could purchase the custom Incoloy 800H tubes from foreign forging manufacturers,  the prices of the alloy 800H tubes are much higher than the expectation.



Therefore, using centrifugal casting techniue to produce Incoloy 800H tubes is the best method when you need the seamless Incoloy 800H tubes urgently in Taiwan.


Incoloy 800H tube manufactured by centrifugal casting V.S. Incoloy 800H tube produced by rolling

The scale of the seamless tube production is big, thus custom Incoloy 800H tube with small order quantity is not able to be made by forging.  However, centrifugal casting is able to make it come true.


Most customers purchased the Incoloy 800H tubes by rolling before they knew us.  The costs of purchase and stock were high.  Compared with rolling, the production steps of centrifugal casting are simpler and centrifugal casting is without plastic working.  The horizontal toughness is better than rolling.



The price of Incoloy 800H tube produced by centrifugal casting at LAWAI V.S. The price of Incoloy 800H tube manufactured by forging imported from other countries.

For example, OD 4”x SCH80 x 2500 mm long



800H tube of LAWAI

Imported 800H tube


Delivery time


45~60 days   win

>90 days



450/kg NTD  win

1,200~2,000/kg NTD

Estimated based on LME Nickel price 18,000 USD/Ton


Other articles regarding our Incoloy 800H tubes

Material on trial - Alloy 800H

Merry Christmas and our 800H superalloy centrifugal casting
