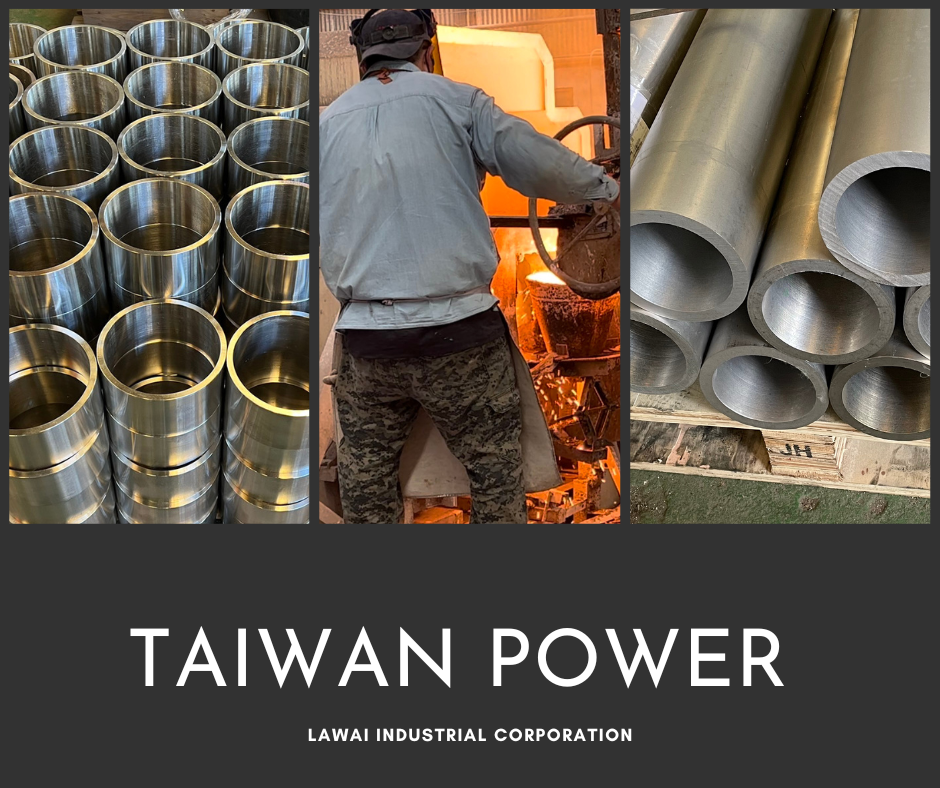

Centrifugally Cast Tubes/Pipes
Energetic atoms aggregate to form the defined elements
Each element interweaves to become the alloyed symphony
Each alloy performs itself to be the beautiful work we see
It's centrifugal casting
Materials of Centrifugally Cast Tubes/Pipes:
- 300 series stainless steel
- 400 series stainless steel
- Duplex stainless steel
- 17-4PH stainless steel
- Ni-resist
- Nickel-based alloys
- Heat-resistant alloys
Dimensions of Centrifugally Cast Tubes/Pipes:
- Length: Max. 3,000 mm
- Diameter: >50 mm
Centrifugal casting is one-piece construction technique by the mold with high speed rotation and the directional solidification. Therefore, the centrifugally cast tubes are seamless and they are without porosities. The microstructures of centrifugally cast tubes are very fine and the mechanical properties are able to be compared with forging. Centrifugal casting is called liquid forging.
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| CF8 ( EN 1.4308 ) | A351/743/744 CF8 | J92600 | 304 | S30400 |
| CF3 ( EN 1.4309 ) | A351/743/744 CF3 | J92500/J92700 | 304L | S30403 |
| CF8M ( EN 1.4408 ) | A351/743/744 CF8M | J92900 | 316 | S31600 |
| CF3M ( EN 1.4409 ) | A351/743/744 CF3M | J92800 | 316L | S31603 |
| CK20 | A351/743/744 CK20 | J94202 | 310 | S31000 |
| CF8C ( EN 1.4552 ) | A351/743/744 CF8C | J92710 | 347 | S34700 |
| CG8M ( EN 1.4412 ) | A351/743/744 CG8M | J93000 | 317 | S31700 |
| CG3M | A351/743/744 CG3M | J92999 | 317L | S31703 |
| CF10SMnN (Nitronic 60) | A351/743 | J92972 | S21800 | |
| CG6MMN (Nitronic 50) | A351/743 | J93790 | S20910 | |
| CF3M-HM (Min. 2.75% Mo) | ||||
| CH20 | A351/743 | J93402 | 309 | S30900 |
| CE20N | A351/451 | J92802 | ||
| Nitronic 33 | ||||
| Nitronic 40 | ||||
| CN7MS | A744 | J94650 | ||
| CN3MN | A743/A744 | J94651 | ||
| CK3MCuN | J93254 | 254SMO | ||
| RA330 | ||||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| CA15 ( EN 1.4011) | A743 CA15 | J91150 | 410 | |
| CA40 ( EN 1.4027 ) | A743 CA40 | J91153 | 420 | |
| CA6NM ( EN 1.4317 ) | A743 CA6NM | J91540 | 13-4, F6NM | |
| CA40F | A744 CA40F | J91154 | 420F | |
| 416 | A582 416 | 416 | S41600 | |
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| HD / JIS SCH11 ( EN 1.4823) | A297 HD | J93005 | ||
| HE / JIS SCH17 | A297 HE | J93403 | ||
| HF / JIS SCH12 ( EN 1.4825) | A297 HF | J92603 | 302B | S30215 |
| HH Type 2 / JIS SCH13-A ( EN 1.4837 ) | A297 HH Type 2 | J93503 | 309 | S30900 |
| HI / JIS SCH18 ( EN 1.4846 ) | A297 HI | J94003 | ||
| HK / JIS SCH21 ( EN 1.4848 ) | A297 HK | J94224 | 310 | S31000 |
| HK40 / JIS SCH22 | A351 HK40 | J94204 | 310 | S31000 |
| HL / JIS SCH23 | A297 HL | N08604 | ||
| HN | A297HN | J94213 | ||
| HP / JIS SCH24 ( EN 1.4857 ) | A297 HP | N08705 | ||
| HT / JIS SCH15 | A297 HT | N08605 | 330 | |
| HU / JIS SCH20 ( EN 1.4865 ) | A297 HU | N08004 | ||
| HW | A297 HW | N08001 | ||
| HX | A297HX | N06006 | ||
| HPNb | A297 HPNb | N28701 | ||
| CT15C | A297 CT15C | N08151 | ||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| 800H ( EN 1.4859 ) | A351 CT15C | N08151 | INCOLOY 800H | N08810 |
| Alloy 625 ( EN 2.4856 ) | A494 CW6MC | N26625 | INCONEL 625 | N06625 |
| Alloy 825 ( EN 2.4858 ) | A494 CU5MCuC | N08826 | INCOLOY 825 | N08825 |
| 718 | N07718 | INCONEL 718 | N07718 | |
| C276 ( EN 2.4686 ) | A494 CW12-MW | N30002 | HASTELLOY C276 | N10276 |
| 800HT | INCOLOY 800HT | N08811 | ||
| 330 | INCOLOY 330 | N08330 | ||
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| CB7Cu-1 | A747 Gr CB7Cu-1 | J92180 | 17-4PH | S17400 |
| CB7Cu-2 | A747 Gr CB7Cu-2 | J92110 | 15-5PH | S15500 |
| LAWAI ALLOY | Cast Specifications | Wrought Specifications | ||
|---|---|---|---|---|
| ASTM | UNS | AISI | UNS | |
| Ni-resist 1 | A436 Type 1 | F41000 | ||
| Ni-resist 2 | A436 Type 2 | F41002 | ||
| D-2M (DIN GGG-NiMn 23 4) | ||||
LAWAI is the No. 1 Centrifugally Cast Tubes/Pipes manufacturer in Taiwan. We provide customized Centrifugally Cast Tubes/Pipes for our clients all over the world. The Centrifugally Cast Tubes/Pipes produced in LAWAI – reliable and beyond your expectation!
